Circulating waste recycling equipment

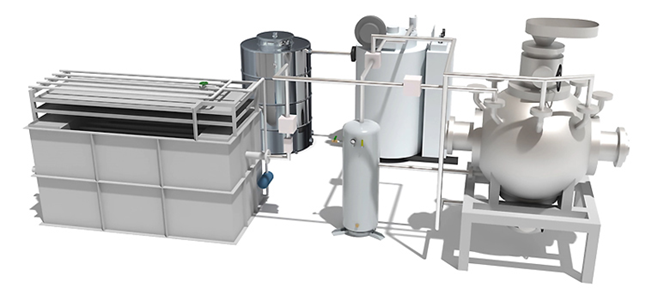

Overview of the EX plant
The EX plant : a completely new recycling equipment by using high-pressure steam
The EX plant makes it possible to dispose of industrial waste, from raw waste to other waste materials and excrement such as livestock.
And even more it treats organic waste into harmless and useful products.
EX plant lineup
| Model | E-500 | E-400 | E-300 | E-200 | E-100 |
|---|---|---|---|---|---|
| Capacity | 5㎥ | 4㎥ | 3㎥ | 2㎥ | 1㎥ |
※Items with a capacity of more than 5 m3 are custom-made products.
※All equipment is built-to-order.
Possibility of the EX plant
Coexistence with nature in the midst of global warming is an important theme imposed on us
Among them, the problem of waste treatment is one of the biggest issues.

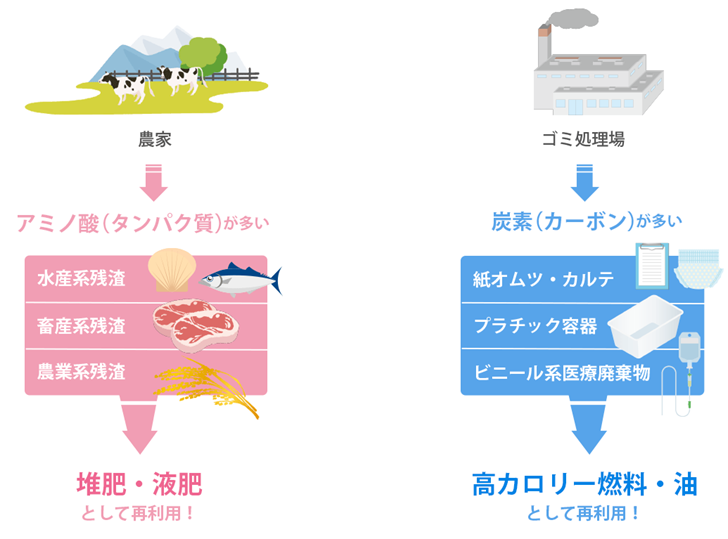

The EX plant enables processing from kitchen garbage to other waste materials and excrement such as livestock.
And even more it treats organic waste into harmless and useful products.

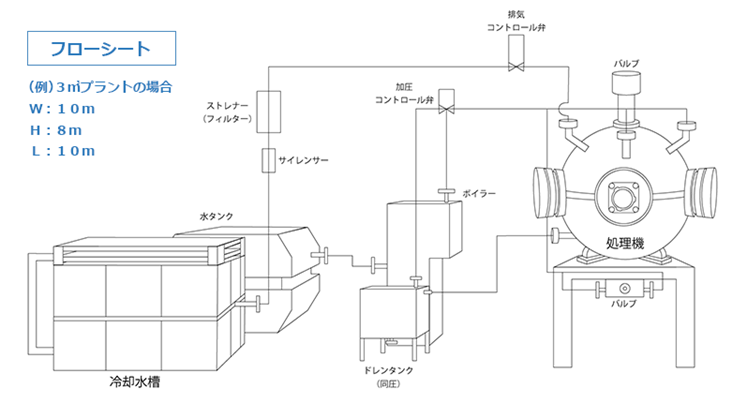

Features of the EX plant
Extraction of organic matter by high temperature / high pressure (230 °C or less / 27 atm or less) steam ；refer to Basic Principle
It is excellent in oiling and fueling organic matter by hydrolysis using superheated steam.
In addition, it saves cost and space compared to conventional combustion equipment.
Running cost
| Fuel costs (e.g. Kerosene) | 3,120 yen/h |
| Power costs | 520 yen/h |
| Water rates | 60 yen/h |
| （Total） | 3,700 yen/h |
Basic Principle
Utilizing the chemical principle of hydrolysis reaction
It is one of the chemical reactions that a solute in an aqueous solution (= a substance dissolved in a solution) reacts with water molecules, and is also called hydrolysis.
The rate of chemical reaction varies depending on acids, alkalis, metals, enzymes, microorganisms, etc., but in general, its rate increases as the temperature rises.

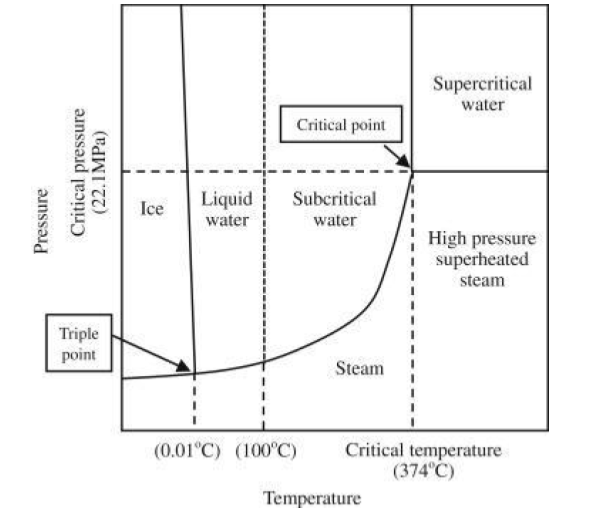

Hydrolysis reaction in sub-critical water area: Sub-critical water hydrolysis reaction
By hydrolyzing organic matter in the “high temperature / high pressure region (100 ℃ / 0.1MPa ~ 374 ℃ / 22.1MPa)”, it can be decomposed efficiently and at high speed, and waste resources can be recycled.

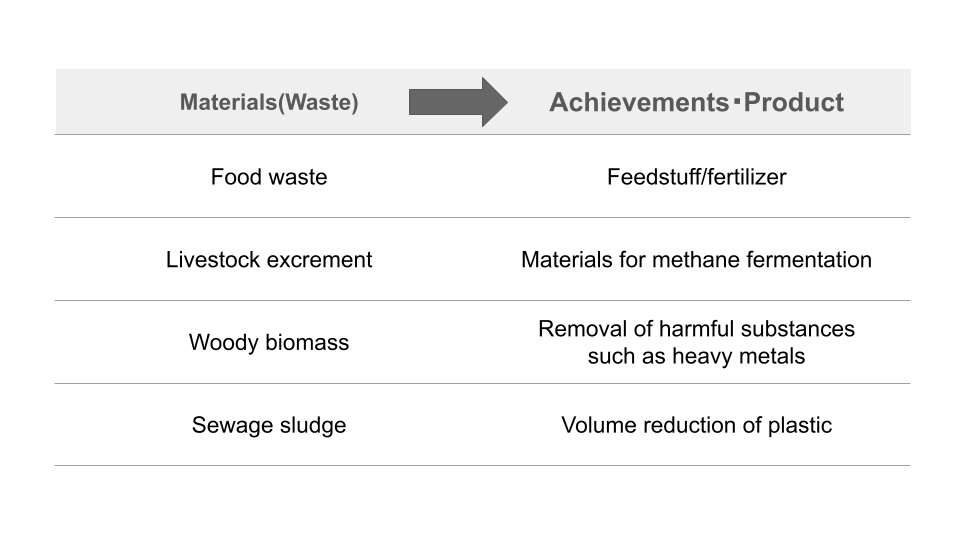

Application of technology
By using equipment that utilizes this technology, recycling of waste is progressing.
